XOLX 120410ER-F40 CTPM245 Solid Carbide Insert, Grade CTPM245, TiAl - Ceratizit 51022460

Ceratizit

XOLX 120410ER-F40 CTPM245 Solid Carbide Insert, Grade CTPM245, TiAl - Ceratizit 51022460

MFR# 51022460ISO/ANSI# XOLX 120410ER-F40 CTPM245Cat# XOLX 120410ER-F40 CTPM245Series XOLX

$27.22List $34.92 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeSquare
GradeCTPM245
MaterialSolid Carbide
CoatingTiAl

Description

The Ceratizit 51022460 is a XOLX 120410ER-F40 CTPM245 solid carbide indexable insert, grade CTPM245, TiAl coated. Suited for stainless steel.

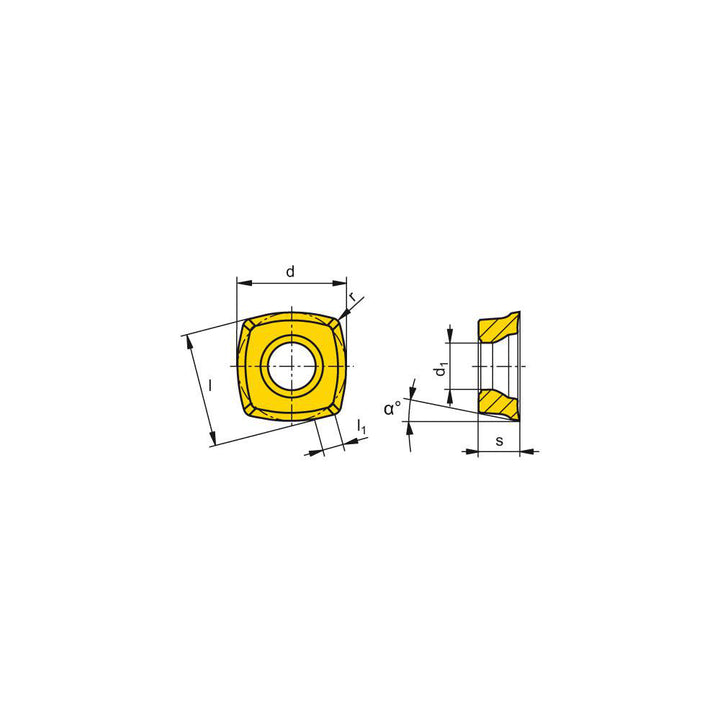

Specifications

Ansi codeXOLX 120410ER-F40 CTPM245
Chip breakerF40
Coating finishTiAl
Coating processPVD
Corner radius0.0394
Cutter series compatibilityHFC
Cutting edge effective length0.4724
Cutting edge styleHoned
Hole diameter0.2165
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code120410
Insert styleXOLX
Iso codeXOLX 120410ER-F40 CTPM245
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberXOLX 120410ER-F40 CTPM245
Manufacturer gradeCTPM245
Material applicationStainless Steel
Material gradeS45
Maximum depth of cut0.2224
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakePositive
Relief angle10.00
Secondary workpiece materialSteel
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
