Ceratizit

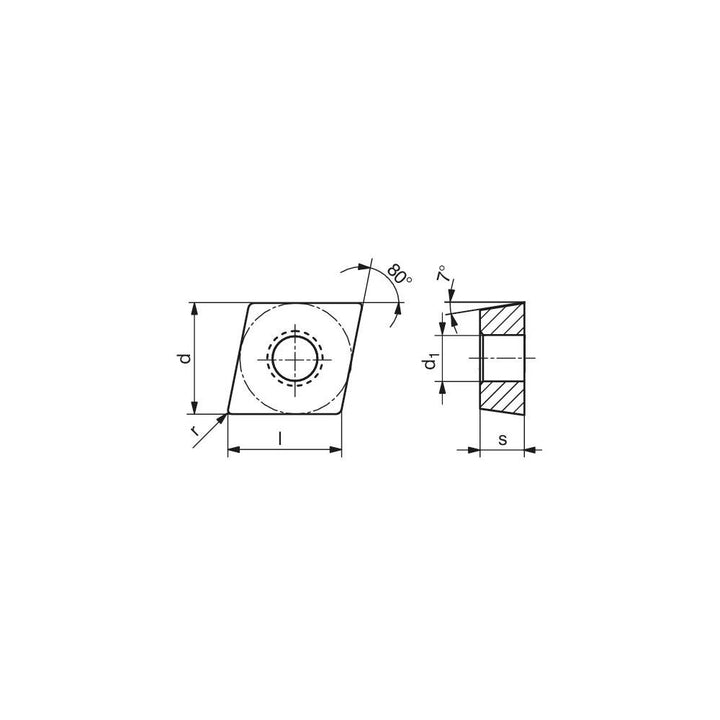

CCMT 120404EN-MRS CT-P25 Carbide Insert, Grade CTP25, Al2O3 - Ceratizit 7530112809
MFR# 7530112809ISO/ANSI# CCMT 120404EN-MRS CT-P25Series CCMT
$6.70List $7.10
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeCTP25
MaterialCarbide
CoatingAl2O3
Description
The Ceratizit 7530112809 is a CCMT 120404EN-MRS CT-P25 carbide indexable insert, grade CTP25, Al2O3 coated. Suited for steel.
Specifications
Chip breakerMRS
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0157
Hole diameter0.2165
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleCCMT
Insert thickness0.1874
Iso codeCCMT 120404EN-MRS CT-P25
Manufacturer gradeCTP25
Maximum depth of cut0.5079
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
