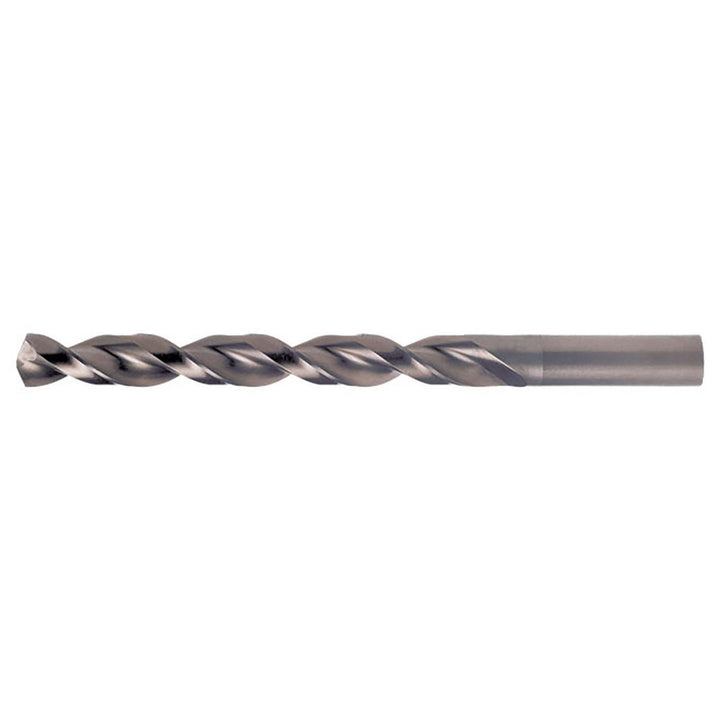

15/32" High Speed Steel Drill Bit, 135° point - Chicago-Latrobe 41030

Chicago-Latrobe

15/32" High Speed Steel Drill Bit, 135° point - Chicago-Latrobe 41030

MFR# 41030Series 150WLP

$19.46List $24.96 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size15/32
Flutes2

Description

The Chicago-Latrobe 41030 is a 15/32" High Speed Steel drill bit, 135° point. Suited for steel. 4-5/16 flute length, 5-3/4 overall length. Series 150WLP.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in15/32
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Flute length in4-5/16
Flute typeParabolic
Material gradeM7
Number of flutes2
Overall length in5-3/4
Point typeNotched
Primary workpiece materialSteel
Shank diameter0.4688
Shank length1.4375
Shank typeStraight-Cylindrical
Web configurationTapered
Web thinningWeb-Thinned
