Chicago-Latrobe

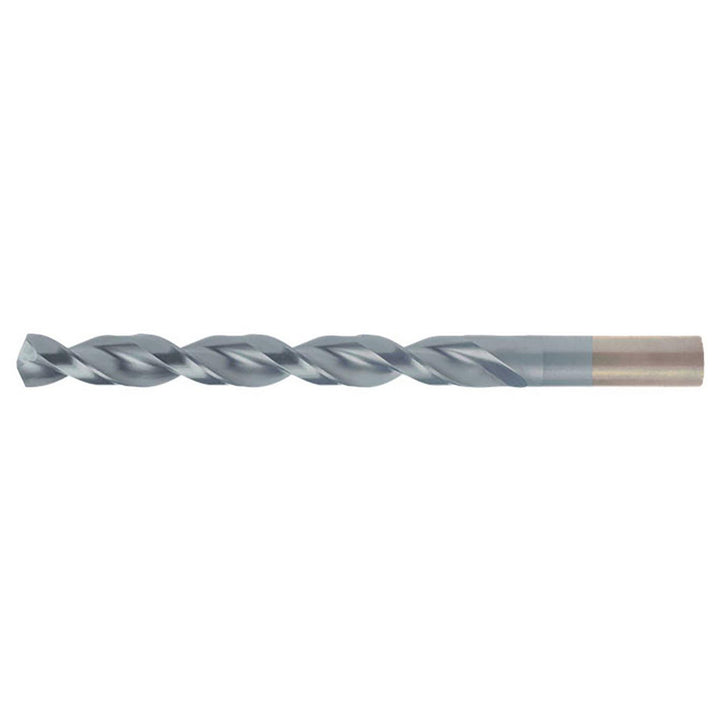

11/32" High Speed Steel Drill Bit, TiCN, 135° point - Chicago-Latrobe 42022
MFR# Chicago-Latrobe-42022Series 150WLPN
$26.70List $34.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size11/32
Flutes2
CoatingTiCN
Description
The Chicago-Latrobe 42022 is a 11/32" High Speed Steel drill bit with a TiCN finish, 135° point. Suited for steel. 3-7/16 flute length, 4-3/4 overall length. Series 150WLPN.
Specifications
Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingTiCN
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in11/32
Drill bit size range0.3000 - 0.3500
Drill point angle degrees135
Flute length in3-7/16
Flute typeParabolic
Material gradeM7
Number of flutes2
Overall length in4-3/4
Point typeNotched
Primary workpiece materialSteel
Shank diameter0.3438
Shank length1.3125
Shank typeStraight-Cylindrical
Web configurationTapered
Web thinningWeb-Thinned
