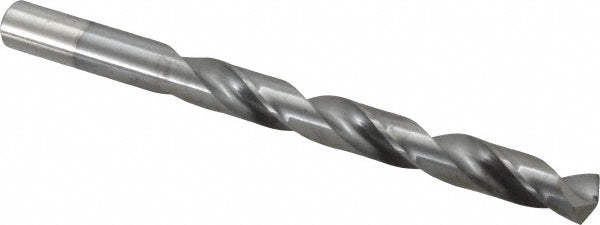

13/32" High Speed Steel Drill Bit, TiCN, 135° point - Chicago-Latrobe 43626

Chicago-Latrobe

13/32" High Speed Steel Drill Bit, TiCN, 135° point - Chicago-Latrobe 43626

MFR# 43626Series 150ASP-TC

$19.46List $24.95 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size13/32
Flutes2
CoatingTiCN

Description

The Chicago-Latrobe 43626 is a 13/32" High Speed Steel drill bit with a TiCN finish, 135° point. Suited for cast iron, stainless steel, steel. 3-7/8 flute length, 5-1/4 overall length. Series 150ASP-TC.

Specifications

Coating finishTiCN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingTiCN
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in13/32
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Flute length in3-7/8
Flute typeSpiral
Material gradeM7
Number of flutes2
Overall length in5-1/4
Point typeSplit
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter in13/32
Shank length1.3750
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsNAS 907 Type B
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
