Letter P High Speed Steel Drill Bit, 118° point - Chicago-Latrobe 44386

Chicago-Latrobe

Letter P High Speed Steel Drill Bit, 118° point - Chicago-Latrobe 44386

MFR# 44386Series 150D

$4.90List $6.29 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

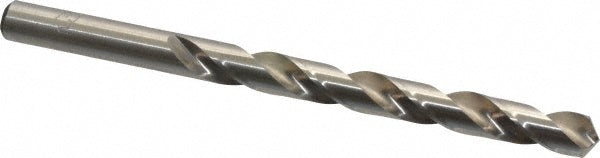

The Chicago-Latrobe 44386 is a Letter P High Speed Steel drill bit, 118° point. Suited for non-ferrous metal. 3-5/16 flute length, 4-5/8 overall length. Series 150D.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.3230
Drill bit size letterP
Drill bit size range0.3000 - 0.3500
Drill point angle degrees118
Flute length in3-5/16
Flute typeSpiral
Number of flutes2
Overall length in4-5/8
Point typeStandard
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.3230
Shank length1.3125
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
