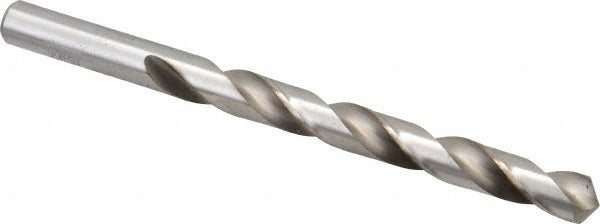

Letter W High Speed Steel Drill Bit, 118° point - Chicago-Latrobe 44393

Chicago-Latrobe

Letter W High Speed Steel Drill Bit, 118° point - Chicago-Latrobe 44393

MFR# 44393Series 150D

$7.14List $9.16 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Chicago-Latrobe 44393 is a Letter W High Speed Steel drill bit, 118° point. Suited for non-ferrous metal. 3-3/4 flute length, 5-1/8 overall length. Series 150D.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.3860
Drill bit size letterW
Drill bit size range0.3500 - 0.4000
Drill point angle degrees118
Flute length in3-3/4
Flute typeSpiral
Number of flutes2
Overall length in5-1/8
Point typeStandard
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.3860
Shank length1.3750
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
