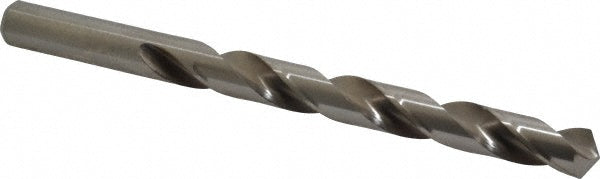

Letter Z High Speed Steel Drill Bit, 118° point - Chicago-Latrobe 44396

Chicago-Latrobe

Letter Z High Speed Steel Drill Bit, 118° point - Chicago-Latrobe 44396

MFR# 44396Series 150D

$10.34List $13.26 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Chicago-Latrobe 44396 is a Letter Z High Speed Steel drill bit, 118° point. Suited for non-ferrous metal. 3-7/8 flute length, 5-1/4 overall length. Series 150D.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.4130
Drill bit size letterZ
Drill bit size range0.4000 - 0.5000
Drill point angle degrees118
Flute length in3-7/8
Flute typeSpiral
Number of flutes2
Overall length in5-1/4
Point typeStandard
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.4130
Shank length1.3750
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
