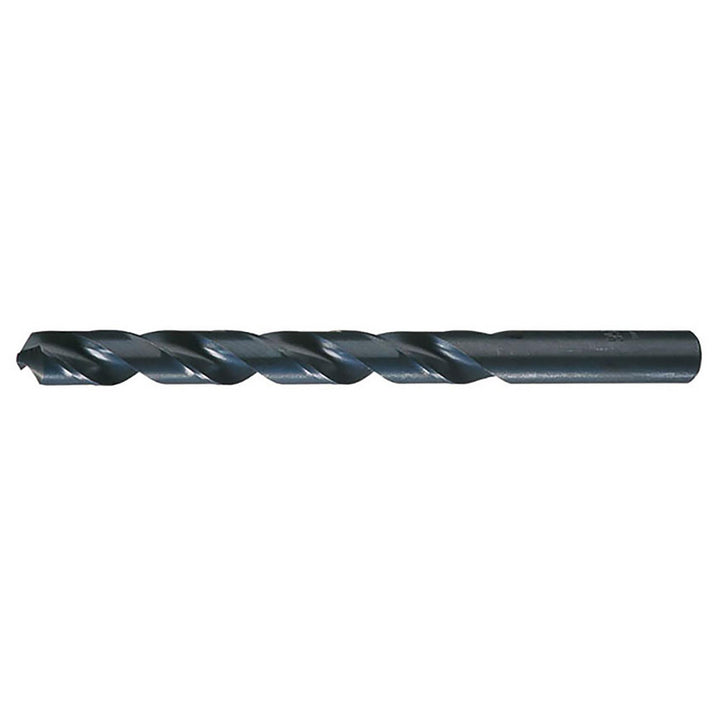

#68 High Speed Steel Drill Bit, Oxide, 135° point - Chicago-Latrobe 44738

Chicago-Latrobe

#68 High Speed Steel Drill Bit, Oxide, 135° point - Chicago-Latrobe 44738

MFR# 44738Series 150ASP

$1.79List $2.29 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Chicago-Latrobe 44738 is a #68 High Speed Steel drill bit with a Oxide finish, 135° point. Suited for cast iron, stainless steel, steel. 1/2 flute length, 1-3/8 overall length. Series 150ASP.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in
Drill bit finish coatingOxide
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size0.0310
Drill bit size range0.0000 - 0.0500
Drill bit size wire#68
Drill point angle degrees135
Flute length in1/2
Flute typeSpiral
Number of flutes2
Overall length in1-3/8
Point typeStandard
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter0.0310
Shank length0.8750
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsNAS 907 Type B
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
