Chicago-Latrobe

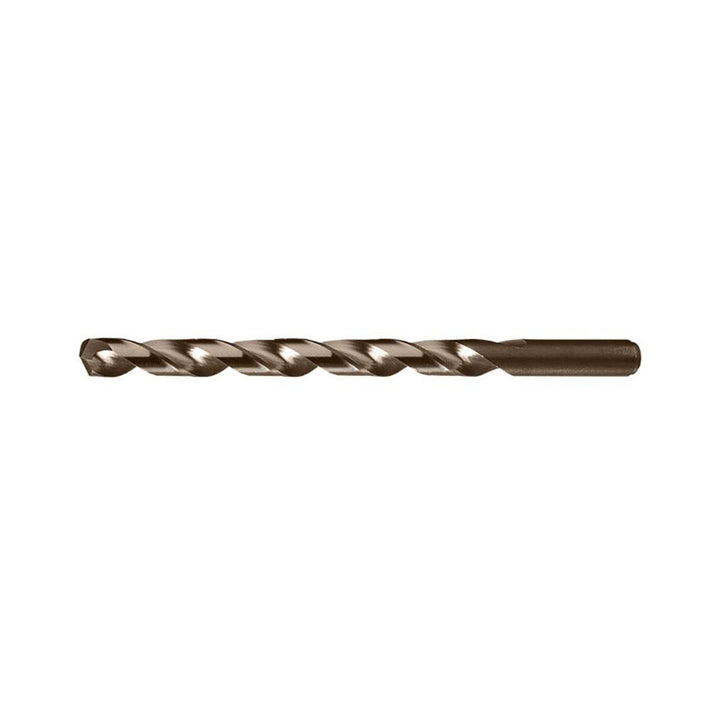

5/64" Cobalt Drill Bit, Coated, 135° point - Chicago-Latrobe 44805
MFR# 44805Series 520
$9.13List $11.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/64
CoatingCoated
Description
The Chicago-Latrobe 44805 is a 5/64" Cobalt drill bit with a Coated finish, 135° point. 2 flute length. Series 520.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size in5/64
Drill point angle degrees135
Flute length in2
Flute typeSpiral
Material applicationCast Iron; High-Tensile Steel; Inconel; Manganese Steel; Titanium
Material gradeM-42
Overall length3-3/4
Point typeSplit
Shank diameter0.0781
Shank length in1-3/4
Shank typeStraight
Spiral typeRegular
Threaded shankNo
Tool applicationSelf-Centering
Tool materialCobalt
Tool performanceHigh
Web configurationTapered
Web thinningWeb-Thinned
