Chicago-Latrobe
13/32" Cobalt Drill Bit, Black Oxide, 135° point - Chicago-Latrobe 44826
MFR# 44826Series 520
$34.11List $43.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size13/32
CoatingBlack Oxide
Description

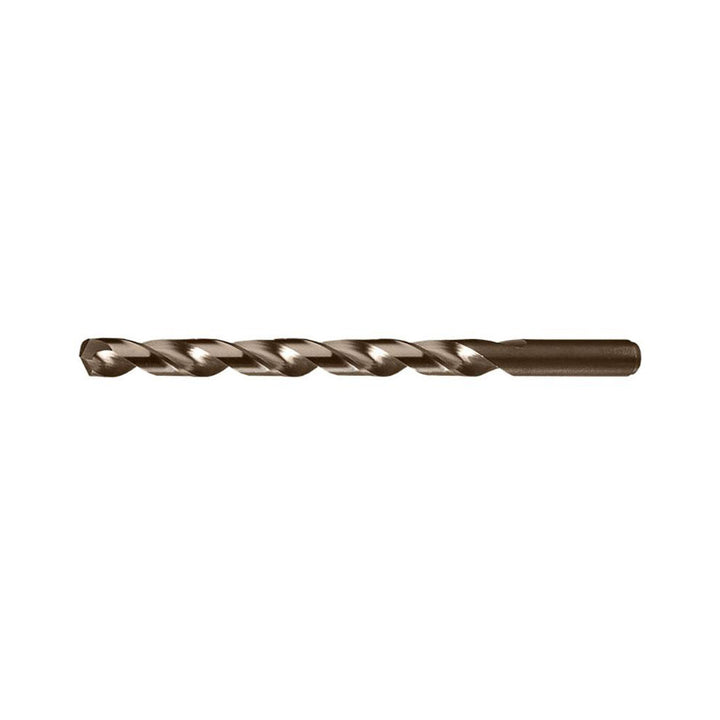

The Chicago-Latrobe 44826 is a 13/32" Cobalt drill bit with a Black Oxide finish, 135° point. 4-3/8 flute length. Series 520.
Specifications
Coating finishBlack Oxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit size in13/32
Drill point angle degrees135
Flute length in4-3/8
Flute typeSpiral
Material applicationCast Iron; High-Tensile Steel; Inconel; Manganese Steel; Titanium
Material gradeM42
Overall length7in
Point typeSplit
Shank diameter0.4062
Shank length2.6250in
Shank typeStraight-Cylindrical
Spiral typeRegular
Threaded shankNo
Tool applicationSelf-Centering
Tool materialCobalt
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
