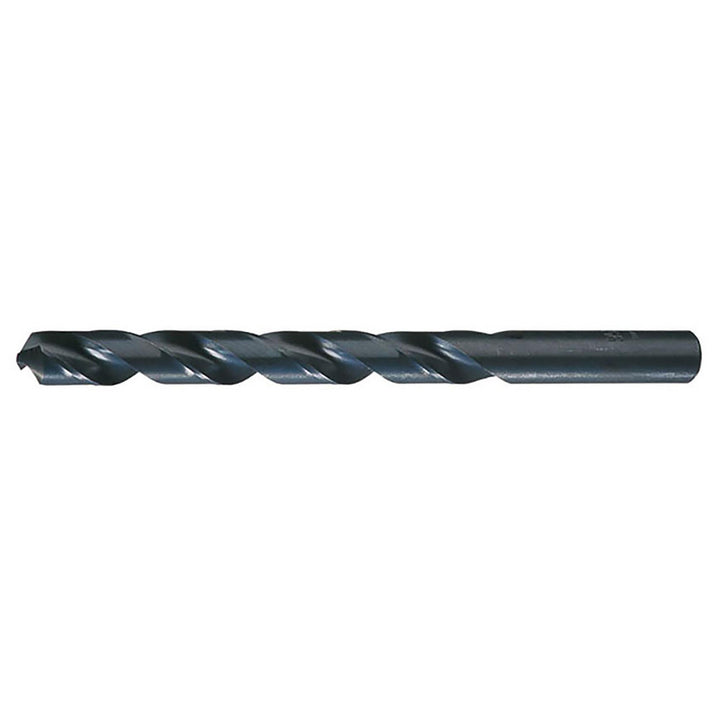

11/32" High Speed Steel Drill Bit, Oxide, 135° point - Chicago-Latrobe 45622

Chicago-Latrobe

11/32" High Speed Steel Drill Bit, Oxide, 135° point - Chicago-Latrobe 45622

MFR# 45622Series 150ASP

$5.44List $6.97 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size11/32
Flutes2

Description

The Chicago-Latrobe 45622 is a 11/32" High Speed Steel drill bit with a Oxide finish, 135° point. Suited for cast iron, stainless steel, steel. 3-7/16 flute length, 4-3/4 overall length. Series 150ASP.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingOxide
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in11/32
Drill bit size range0.3000 - 0.3500
Drill point angle degrees135
Flute length in3-7/16
Flute typeSpiral
Number of flutes2
Overall length in4-3/4
Point typeSplit
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter in11/32
Shank length1.3125
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsNAS 907 Type B
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
