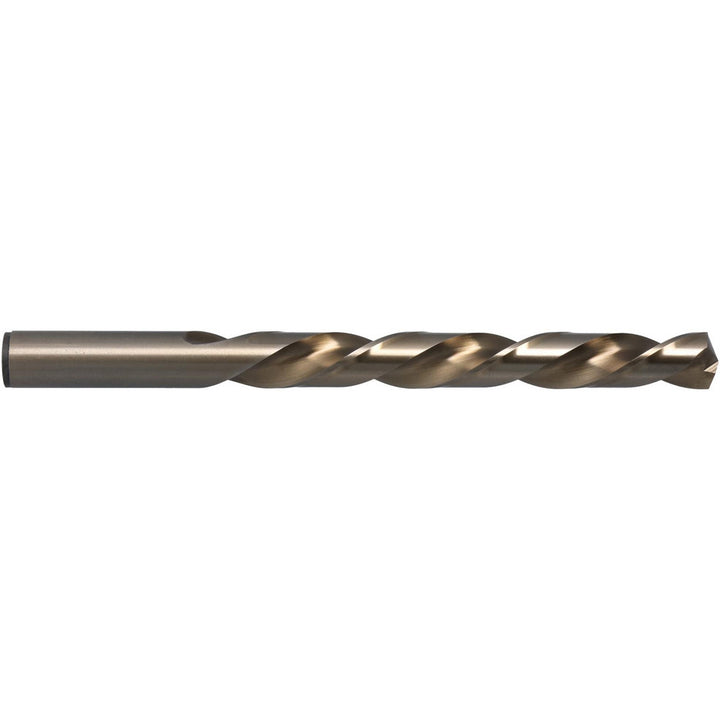

5/32" Cobalt Drill Bit, Straw, 135° point - Chicago-Latrobe 46510

Chicago-Latrobe

5/32" Cobalt Drill Bit, Straw, 135° point - Chicago-Latrobe 46510

MFR# 46510Series 550L

$5.94List $7.62 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size5/32
Flutes2
CoatingStraw

Description

The Chicago-Latrobe 46510 is a 5/32" Cobalt drill bit with a Straw finish, 135° point. Suited for steel, high-temp alloy, cast iron. 2 flute length, 3-1/8 overall length. Series 550L.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionLeft Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in5/32
Drill point angle degrees135
Flute by diameter ratio3xD
Flute length in2
Flute typeRegular Spiral
Material gradeM42
Number of flats0
Number of flutes2
Overall length in3-1/8
Point typeSplit Point
Primary workpiece materialSteel; High-Temp Alloy; Cast Iron
Shank diameter in5/32
Shank length in1-1/8
Shank typeStraight
Specification designationANSI
Spiral typeRegular
Tool applicationDrilling; Holemaking; Self-Centering
Web configurationTapered
Web thinningWeb-Thinned
