Chicago-Latrobe

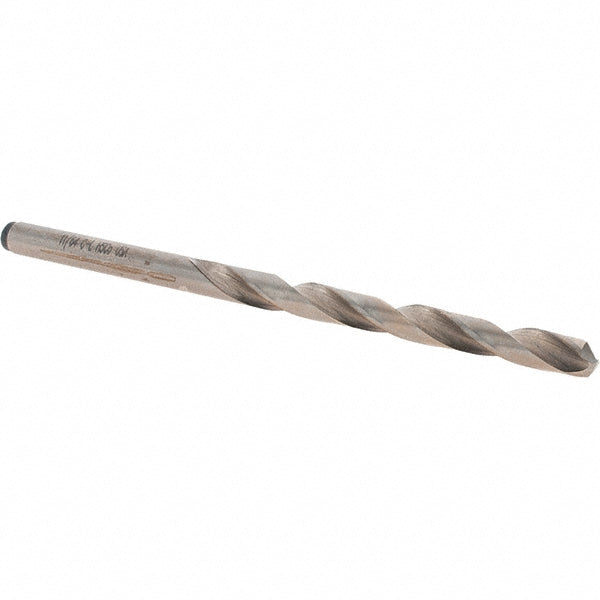

11/64" Cobalt Drill Bit, TiN, 135° point - Chicago-Latrobe 47711
MFR# 47711Series 550ASP
$2.93List $3.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size11/64
Flutes2
CoatingTiN
Description
The Chicago-Latrobe 47711 is a 11/64" Cobalt drill bit with a TiN finish, 135° point. Suited for titanium. Series 550ASP.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in11/64
Drill bit size range0.1500 - 0.2000
Drill point angle degrees135
Flute length2.1250
Flute typeSpiral
Number of flutes2
Overall length3.2500
Point typeSplit
Primary workpiece materialTitanium
Shank diameter in11/64
Shank length1.1248
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907-B
Spiral typeRegular
StandardsNAS 907 Type B
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
