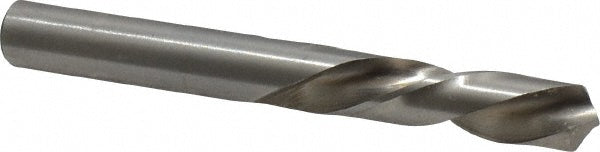

23/64" HSS Screw Machine Drill Bit, 118° point - Chicago-Latrobe 48923

Chicago-Latrobe

23/64" HSS Screw Machine Drill Bit, 118° point - Chicago-Latrobe 48923

MFR# 48923Series 157L

$15.18List $19.46 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size23/64
Flutes2

Description

The Chicago-Latrobe 48923 is a 23/64" HSS Screw Machine drill bit, 118° point. Suited for aluminum, copper, magnesium, slate, thermoplastic, wood. 1-3/4 flute length, 3-1/16 overall length. Series 157L.

Specifications

Coolant throughNo
Cutting directionLeft Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit size in23/64
Drill bit size range0.3500 to 0.4000
Drill length typeScrew Machine
Drill point angle118
Flute length in1-3/4
Flute typeRegular Spiral
Number of flutes2
Overall length in3-1/16
Point typeStandard
Primary workpiece materialAluminum; Copper; Magnesium; Slate; Thermoplastic; Wood
Shank diameter0.3594
Shank length in1-5/16
Shank typeStraight
Spiral typeRegular
StandardsISO
Tool materialHSS
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
