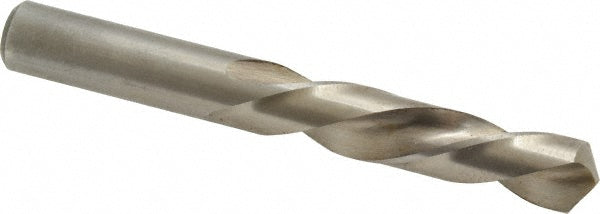

13/32" High-Speed Steel Screw Machine Drill Bit, 118° point - Chicago-Latrobe 48926

Chicago-Latrobe

13/32" High-Speed Steel Screw Machine Drill Bit, 118° point - Chicago-Latrobe 48926

MFR# 48926Series 157L

$18.17List $23.31 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size13/32
Flutes2

Description

The Chicago-Latrobe 48926 is a 13/32" High-Speed Steel Screw Machine drill bit, 118° point. Suited for aluminum, copper, magnesium, slate, thermoplastic, wood. 1-15/16 flute length, 3-5/16 overall length. Series 157L.

Specifications

Coolant throughNo
Cutting directionLeft Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit size in13/32
Drill bit size range0.4000 to 0.4500
Drill length typeScrew Machine
Drill point angle118
Flute length in1-15/16
Flute typeSpiral
Number of flutes2
Overall length in3-5/16
Point typeStandard
Primary workpiece materialAluminum; Copper; Magnesium; Slate; Thermoplastic; Wood
Shank diameter0.4063
Shank length in1-3/8
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO
Tool materialHigh-Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
