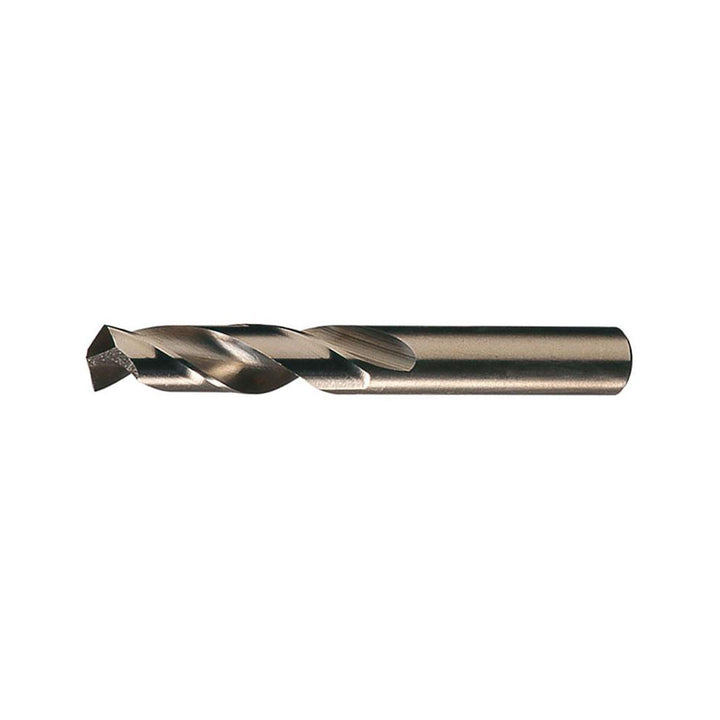

0.1772" Cobalt Screw Machine Drill Bit, Straw, 135° point - Chicago-Latrobe 49011

Chicago-Latrobe

0.1772" Cobalt Screw Machine Drill Bit, Straw, 135° point - Chicago-Latrobe 49011

MFR# 49011Series 559

$4.34List $5.57 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingStraw

Description

The Chicago-Latrobe 49011 is a 0.1772" Cobalt Screw Machine drill bit with a Straw finish, 135° point. Suited for cast iron, steel. 63/64 flute length. Series 559.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit size0.1772
Drill bit size range0.1500 to 0.2000
Drill length typeScrew Machine
Drill point angle135
Drill tip finish coatingOxide
Flute by diameter ratio4xD
Flute length in63/64
Flute typeRegular Spiral
Material gradeM42
Maximum drilling depth0.6202
Number of flutes2
Overall length2.3670
Point typeSplit Point
Primary workpiece materialCast Iron; Steel
Shank diameter0.1772
Shank length1.3870
Shank typeStraight
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsISO
Tool materialCobalt
Tool performanceHeavy-Duty
