Chicago-Latrobe

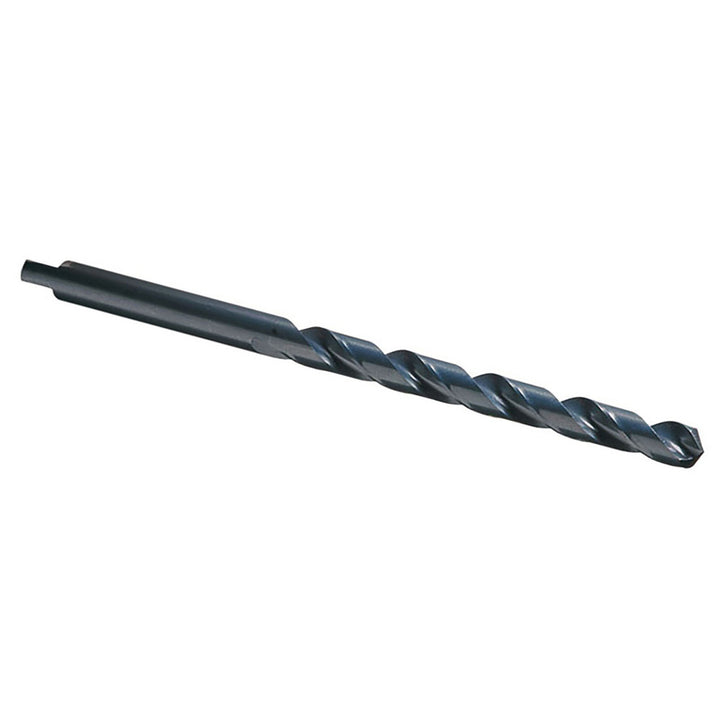

9/16" High Speed Steel Drill Bit, Coated, 118° point - Chicago-Latrobe 49536
MFR# 49536Series 255AN
$36.85List $47.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/16
CoatingCoated
Description
The Chicago-Latrobe 49536 is a 9/16" High Speed Steel drill bit with a Coated finish, 118° point. 4-7/8 flute length. Series 255AN.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0012 in
Drill bit gradeGeneral Purpose
Drill bit size in9/16
Drill point angle degrees118
Flute length in4-7/8
Flute typeSpiral
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Tool Steel
Overall length8-1/4
Point typeStandard
Shank diameter in9/16
Shank length3.3750
Shank typeTanged
Spiral typeRegular
Threaded shankNo
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
