Chicago-Latrobe

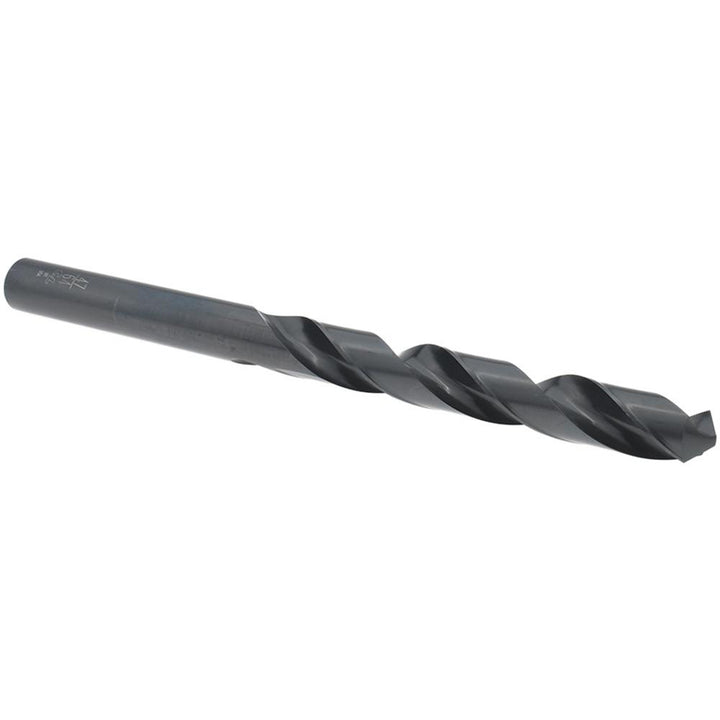

47/64" HSS Drill Bit, Black Oxide, 118° point - Chicago-Latrobe 49747
MFR# 49747Series 120
$64.43List $82.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size47/64
CoatingBlack Oxide
Description
The Chicago-Latrobe 49747 is a 47/64" HSS drill bit with a Black Oxide finish, 118° point. 5-7/8 flute length. Series 120.
Specifications
Coating finishBlack Oxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0012 in
Drill bit gradeGeneral Purpose
Drill bit size in47/64
Drill point angle degrees118
Flute length in5-7/8
Flute typeSpiral
Material applicationAlloy Steel; Carbon Steel; Cast Iron
Overall length9-3/4
Point typeStandard
Shank diameter in47/64
Shank length3.8750
Shank typeStraight-Cylindrical
Spiral typeRegular
Threaded shankNo
Tool materialHSS
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
