Chicago-Latrobe

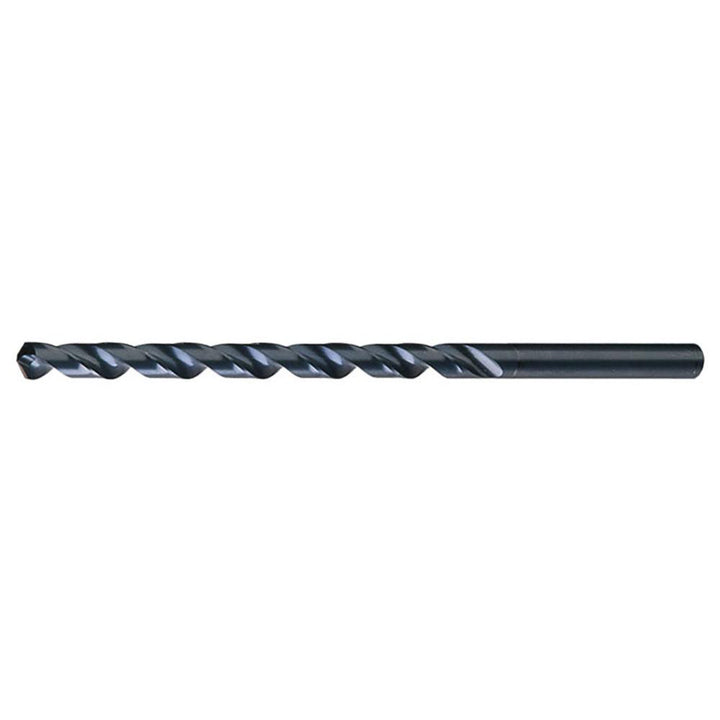

3/8" High Speed Steel Drill Bit, Oxide, 118° point - Chicago-Latrobe 50743
MFR# 50743Series 120X
$33.92List $43.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/8
Flutes2
CoatingOxide
Description
The Chicago-Latrobe 50743 is a 3/8" High Speed Steel drill bit with a Oxide finish, 118° point. Suited for cast iron, steel. 9 flute length, 12 overall length. Series 120X.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit size in3/8
Drill point angle118
Flute length in9
Flute typeSpiral
Number of flutes2
Overall length in12
Point typeNotched
Primary workpiece materialCast Iron; Steel
Shank diameter in3/8
Shank length3.0000
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsCalifornia PROP 65
Tool applicationLong Reach Drilling
Tool materialHigh Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
