Chicago-Latrobe

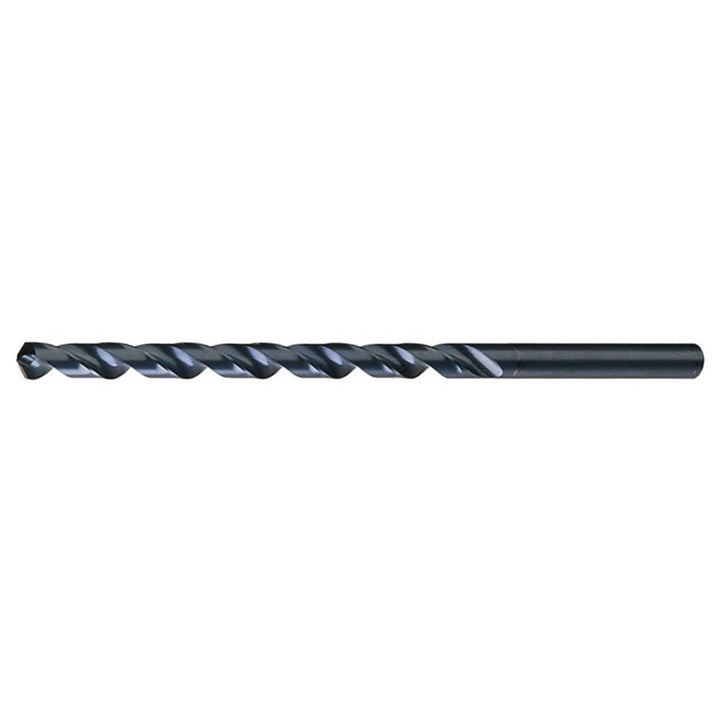

7/16" High Speed Steel Drill Bit, Oxide, 118° point - Chicago-Latrobe 50750
MFR# 50750Series 120X
$39.74List $50.97
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/16
Flutes2
CoatingOxide
Description
The Chicago-Latrobe 50750 is a 7/16" High Speed Steel drill bit with a Oxide finish, 118° point. Suited for cast iron, steel. 9 flute length, 12 overall length. Series 120X.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit size in7/16
Drill point angle118
Flute length in9
Flute typeSpiral
Number of flutes2
Overall length in12
Point typeNotched
Primary workpiece materialCast Iron; Steel
Shank diameter in7/16
Shank length3.0000
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsCalifornia PROP 65
Tool applicationLong Reach Drilling
Tool materialHigh Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
