Chicago-Latrobe

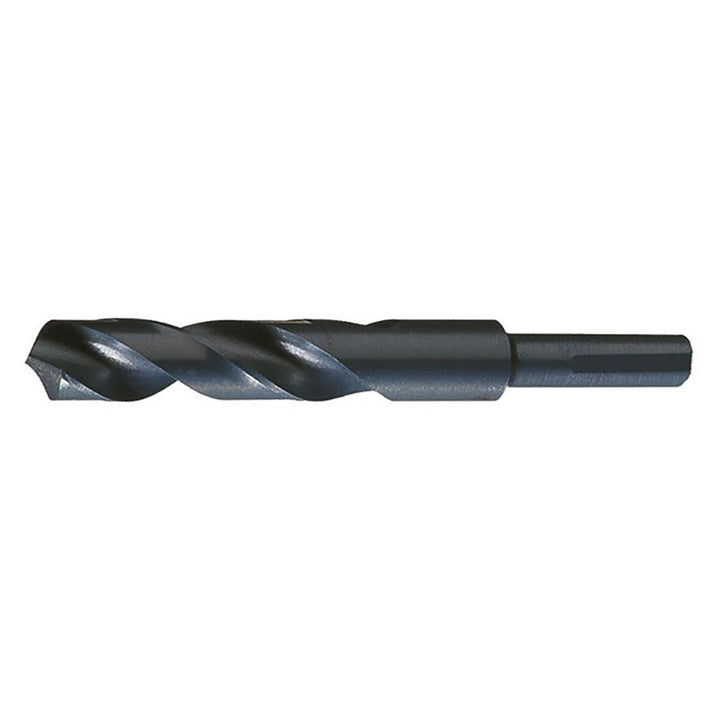

1/2" High Speed Steel Reduced Shank Drill Bit, Coated, 118° point - Chicago-Latrobe 52432
MFR# 52432Series 190F
$25.62List $32.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/2
Flutes2
CoatingCoated
Description
The Chicago-Latrobe 52432 is a 1/2" High Speed Steel Reduced Shank drill bit with a Coated finish, 118° point. Suited for wood. 3-1/8 flute length, 6 overall length. Series 190F.
Specifications
Coating finishCoated
CoolantNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit size in1/2
Drill length typeReduced Shank
Drill point angle118
Flute length in3-1/8
Flute typeSpiral
Number of flats3
Number of flutes2
Overall length in6
Point typeSplit
Primary workpiece materialWood
Secondary workpiece materialAlloy Steel; Carbon Steel; Cast Iron; Wood
Shank diameter in1/2
Shank length2.2500
Shank typeWeldon
Spiral typeRegular
Tool applicationPortable Drilling
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
