Chicago-Latrobe

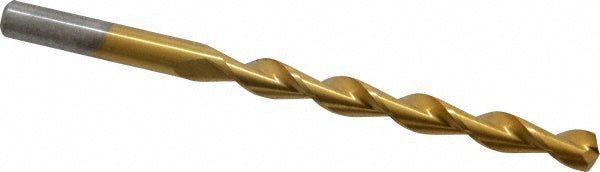

Letter I High Speed Steel Drill Bit, TiN, 135° point - Chicago-Latrobe 53876
MFR# 53876
$12.50List $16.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiN
Description
The Chicago-Latrobe 53876 is a Letter I High Speed Steel drill bit with a TiN finish, 135° point. 2-7/8 flute length, 4-1/8 overall length.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingTitanium Nitride
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size0.2720
Drill bit size letterI
Drill bit size range0.2500 - 0.3000
Drill point angle degrees135
Flute length in2-7/8
Flute typeParabolic
Overall length in4-1/8
Point typeSplit
Shank diameter0.2720
Shank typeStraight-Cylindrical
Web configurationTapered
Web thinningWeb-Thinned
