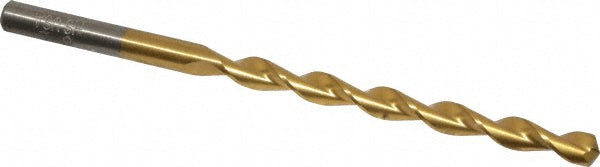

3/16" High Speed Steel Drill Bit, TiN, 135° point - Chicago-Latrobe 53905

Chicago-Latrobe

3/16" High Speed Steel Drill Bit, TiN, 135° point - Chicago-Latrobe 53905

MFR# 53905Series 150DHT

$5.49List $7.04 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/16
Flutes2
CoatingTiN

Description

The Chicago-Latrobe 53905 is a 3/16" High Speed Steel drill bit with a TiN finish, 135° point. Suited for steel alloy. 2-5/16 flute length, 3-1/2 overall length. Series 150DHT.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit finish coatingTitanium Nitride
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in3/16
Drill bit size range0.1500 - 0.2000
Drill point angle degrees135
Flute length in2-5/16
Flute typeParabolic
Number of flutes2
Overall length in3-1/2
Point typeSplit
Primary workpiece materialSteel Alloy
Shank diameter in3/16
Shank length1.1875
Shank typeStraight-Cylindrical
Web configurationTapered
Web thinningWeb-Thinned
