15/64" High Speed Steel Drill Bit, TiN, 135° point - Chicago-Latrobe 53908

Chicago-Latrobe

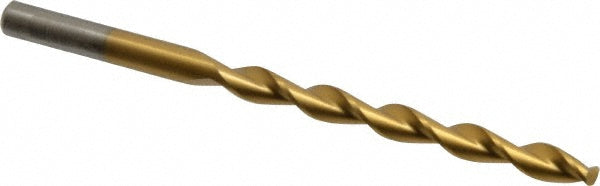

15/64" High Speed Steel Drill Bit, TiN, 135° point - Chicago-Latrobe 53908

MFR# 53908Series 150DHT

$7.44List $9.54 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size15/64
Flutes2
CoatingTiN

Description

The Chicago-Latrobe 53908 is a 15/64" High Speed Steel drill bit with a TiN finish, 135° point. Suited for steel alloy. 2-5/8 flute length, 3-7/8 overall length. Series 150DHT.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit finish coatingTitanium Nitride
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in15/64
Drill bit size range0.2000 - 0.2500
Drill point angle degrees135
Flute length in2-5/8
Flute typeParabolic
Number of flutes2
Overall length in3-7/8
Point typeSplit
Primary workpiece materialSteel Alloy
Shank diameter in15/64
Shank length1.2500
Shank typeStraight-Cylindrical
Web configurationTapered
Web thinningWeb-Thinned
