11/32" High Speed Steel Drill Bit, TiN, 135° point - Chicago-Latrobe 53915

Chicago-Latrobe

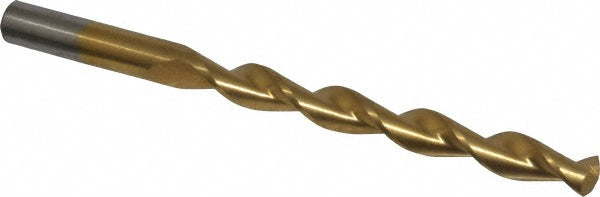

11/32" High Speed Steel Drill Bit, TiN, 135° point - Chicago-Latrobe 53915

MFR# 53915Series 150DHT

$14.20List $18.22 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size11/32
Flutes2
CoatingTiN

Description

The Chicago-Latrobe 53915 is a 11/32" High Speed Steel drill bit with a TiN finish, 135° point. Suited for steel alloy. 3-7/16 flute length, 4-3/4 overall length. Series 150DHT.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingTitanium Nitride
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in11/32
Drill bit size range0.3000 - 0.3500
Drill point angle degrees135
Flute length in3-7/16
Flute typeParabolic
Number of flutes2
Overall length in4-3/4
Point typeSplit
Primary workpiece materialSteel Alloy
Shank diameter in11/32
Shank length1.3125
Shank typeStraight-Cylindrical
Web configurationTapered
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
