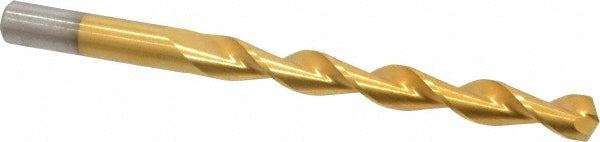

3/8" High Speed Steel Drill Bit, TiN, 135° point - Chicago-Latrobe 53917

Chicago-Latrobe

3/8" High Speed Steel Drill Bit, TiN, 135° point - Chicago-Latrobe 53917

MFR# 53917Series 150DHT

$18.05List $23.15 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/8
Flutes2
CoatingTiN

Description

The Chicago-Latrobe 53917 is a 3/8" High Speed Steel drill bit with a TiN finish, 135° point. Suited for steel alloy. 3-5/8 flute length, 5 overall length. Series 150DHT.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingTitanium Nitride
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in3/8
Drill bit size range0.3500 - 0.4000
Drill point angle degrees135
Flute length in3-5/8
Flute typeParabolic
Number of flutes2
Overall length in5
Point typeSplit
Primary workpiece materialSteel Alloy
Shank diameter in3/8
Shank length1.3750
Shank typeStraight-Cylindrical
Web configurationTapered
Web thinningWeb-Thinned
