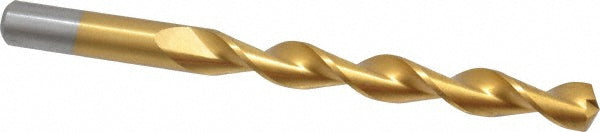

13/32" High Speed Steel Drill Bit, TiN, 135° point - Chicago-Latrobe 53919

Chicago-Latrobe

13/32" High Speed Steel Drill Bit, TiN, 135° point - Chicago-Latrobe 53919

MFR# 53919Series 150DHT

$20.86List $26.75 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size13/32
Flutes2
CoatingTiN

Description

The Chicago-Latrobe 53919 is a 13/32" High Speed Steel drill bit with a TiN finish, 135° point. Suited for steel alloy. 3-7/8 flute length, 5-1/4 overall length. Series 150DHT.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingTitanium Nitride
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in13/32
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Flute length in3-7/8
Flute typeParabolic
Number of flutes2
Overall length in5-1/4
Point typeSplit
Primary workpiece materialSteel Alloy
Shank diameter in13/32
Shank length1.3750
Shank typeStraight-Cylindrical
Web configurationTapered
Web thinningWeb-Thinned
