Chicago-Latrobe

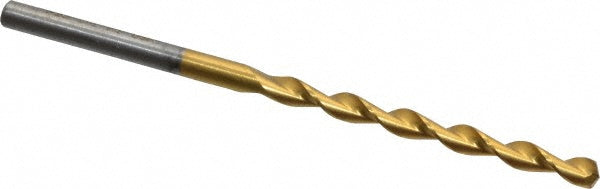

#30 High Speed Steel Drill Bit, TiN, 135° point - Chicago-Latrobe 53959
MFR# 53959Series 150DHT
$4.33List $5.55
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Chicago-Latrobe 53959 is a #30 High Speed Steel drill bit with a TiN finish, 135° point. Suited for steel alloy. 1-5/8 flute length, 2-3/4 overall length. Series 150DHT.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit finish coatingTitanium Nitride
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size0.1285
Drill bit size range0.1000 - 0.1500
Drill bit size wire#30
Drill point angle degrees135
Flute length in1-5/8
Flute typeParabolic
Number of flutes2
Overall length in2-3/4
Point typeSplit
Primary workpiece materialSteel Alloy
Shank diameter0.1285
Shank length1.1250
Shank typeStraight-Cylindrical
Web configurationTapered
Web thinningWeb-Thinned
