Chicago-Latrobe
#37 HSS Drill Bit, TiN, 135° point - Chicago-Latrobe 53966
MFR# 53966Series 150DHT
$4.25List $5.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description

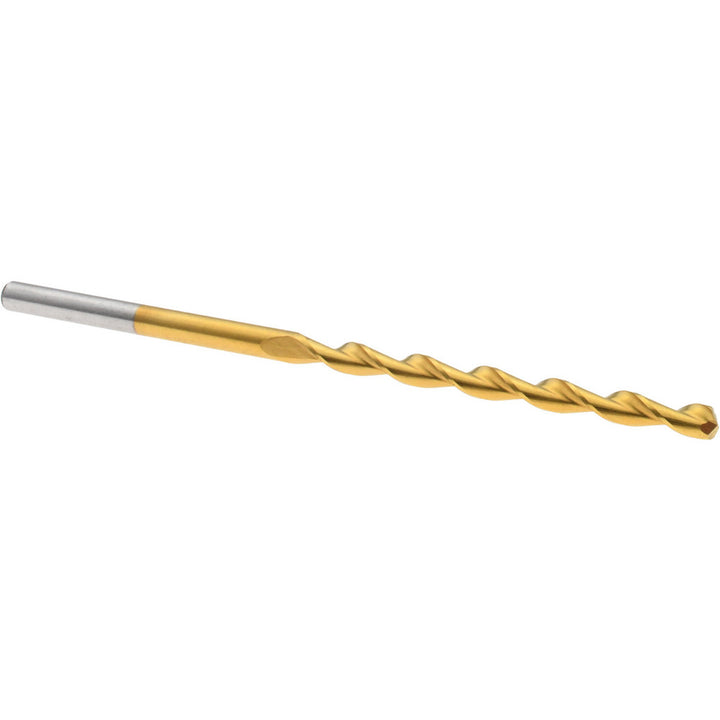

The Chicago-Latrobe 53966 is a #37 HSS drill bit with a TiN finish, 135° point. Suited for steel. 1-7/16 flute length, 2-1/2 overall length. Series 150DHT.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in
Drill bit gradeGeneral Purpose
Drill bit materialHSS
Drill bit size0.1040
Drill bit size range0.1000 - 0.1500
Drill bit size wire#37
Drill point angle degrees135
Flute length in1-7/16
Flute typeParabolic
Number of flutes2
Overall length in2-1/2
Point typeSplit Point
Primary workpiece materialSteel
Shank diameter0.1875
Shank length1.0625
Shank typeStraight
Web configurationTapered
Web thinningWeb-Thinned
