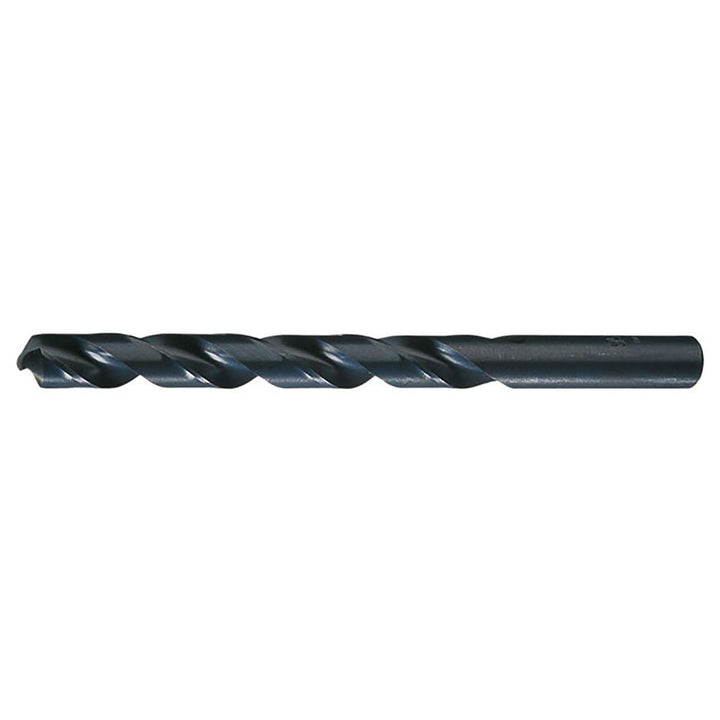

7/32" High Speed Steel Drill Bit, Oxide, 118° point - Chicago-Latrobe 57214

Chicago-Latrobe

7/32" High Speed Steel Drill Bit, Oxide, 118° point - Chicago-Latrobe 57214

MFR# 57214Series 150K

$3.16List $4.06 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/32
Flutes2

Description

The Chicago-Latrobe 57214 is a 7/32" High Speed Steel drill bit with a Oxide finish, 118° point. Suited for magnesium alloy. 2-1/2 flute length, 3-3/4 overall length. Series 150K.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit finish coatingOxide
Drill bit materialHigh Speed Steel
Drill bit size in7/32
Drill bit size range0.2000 - 0.2500
Drill point angle degrees118
Flute length in2-1/2
Flute typeSpiral
Number of flutes2
Overall length in3-3/4
Point typeSplit
Primary workpiece materialMagnesium Alloy
Shank diameter0.2188
Shank length1.2500
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
