29/64" High Speed Steel Drill Bit, 135° point - Chicago-Latrobe 68929

Chicago-Latrobe

29/64" High Speed Steel Drill Bit, 135° point - Chicago-Latrobe 68929

MFR# 68929Series 150DH

$12.77List $16.37 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size29/64
Flutes2

Description

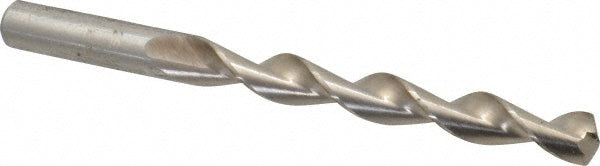

The Chicago-Latrobe 68929 is a 29/64" High Speed Steel drill bit, 135° point. Suited for steel alloy. 4-3/16 flute length, 5-5/8 overall length. Series 150DH.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in29/64
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Flute length in4-3/16
Flute typeParabolic
Number of flutes2
Overall length in5-5/8
Point typeSplit
Primary workpiece materialSteel Alloy
Shank diameter in29/64
Shank length1.4375
Shank typeStraight-Cylindrical
Web configurationTapered
Web thinningWeb-Thinned
