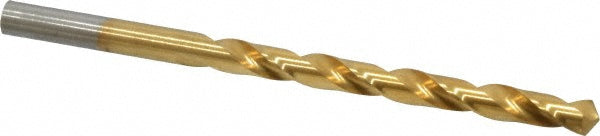

15/64" High Speed Steel Drill Bit, TiN, 118° point - Chicago-Latrobe 70215

Chicago-Latrobe

15/64" High Speed Steel Drill Bit, TiN, 118° point - Chicago-Latrobe 70215

MFR# 70215Series 150T

$5.16List $6.63 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size15/64
Flutes2
CoatingTiN

Description

The Chicago-Latrobe 70215 is a 15/64" High Speed Steel drill bit with a TiN finish, 118° point. Suited for cast iron, steel. 2-5/8 flute length, 3-7/8 overall length. Series 150T.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit finish coatingTitanium Nitride
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in15/64
Drill bit size range0.2000 - 0.2500
Drill point angle degrees118
Flute length in2-5/8
Flute typeSpiral
Number of flutes2
Overall length in3-7/8
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter in15/64
Shank length1.2500
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
