Chicago-Latrobe

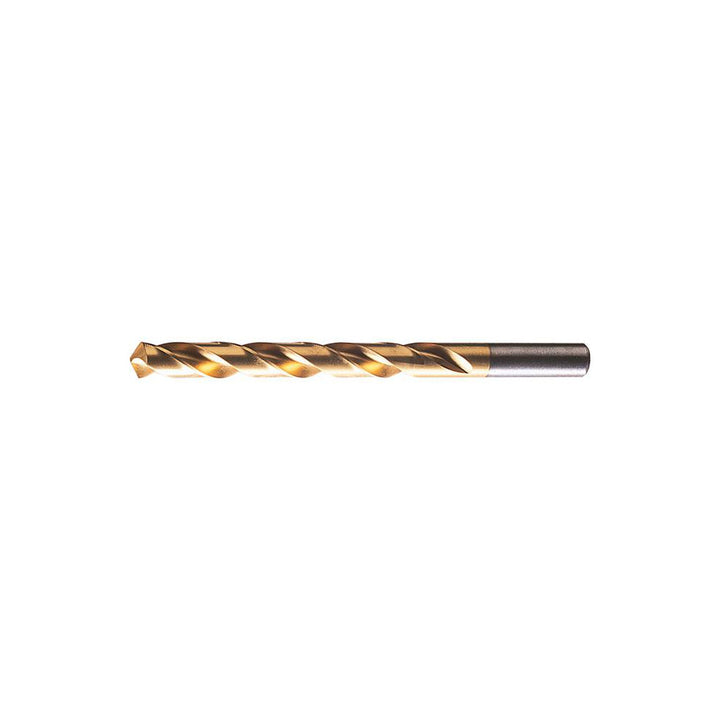

17/32" High Speed Steel Drill Bit, TiN, 118° point - Chicago-Latrobe 70234
MFR# 70234Series 150TN
$34.65List $44.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size17/32
Flutes2
CoatingTiN
Description
The Chicago-Latrobe 70234 is a 17/32" High Speed Steel drill bit with a TiN finish, 118° point. Suited for cast iron, steel. Series 150TN.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0012 in
Drill bit finish coatingTitanium Nitride
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in17/32
Drill bit size range0.5000 - 0.6500
Drill point angle degrees118
Flute length4.8125
Flute typeSpiral
Number of flutes2
Overall length6.6250
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter in17/32
Shank length1.8126
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
