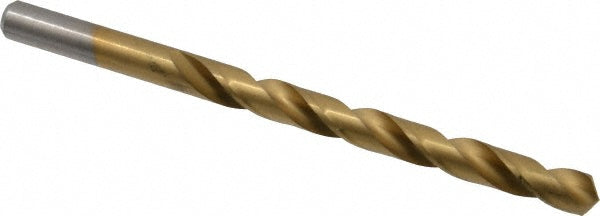

Letter K High Speed Steel Drill Bit, TiN, 118° point - Chicago-Latrobe 70311

Chicago-Latrobe

Letter K High Speed Steel Drill Bit, TiN, 118° point - Chicago-Latrobe 70311

MFR# 70311Series 150T

$8.64List $11.09 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The Chicago-Latrobe 70311 is a Letter K High Speed Steel drill bit with a TiN finish, 118° point. Suited for cast iron, steel. 2-15/16 flute length, 4-1/4 overall length. Series 150T.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingTitanium Nitride
Drill bit materialHigh Speed Steel
Drill bit size0.2810
Drill bit size letterK
Drill bit size range0.2500 - 0.3000
Drill point angle degrees118
Flute length in2-15/16
Flute typeSpiral
Number of flutes2
Overall length in4-1/4
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.2810
Shank length1.3125
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
