Chicago-Latrobe

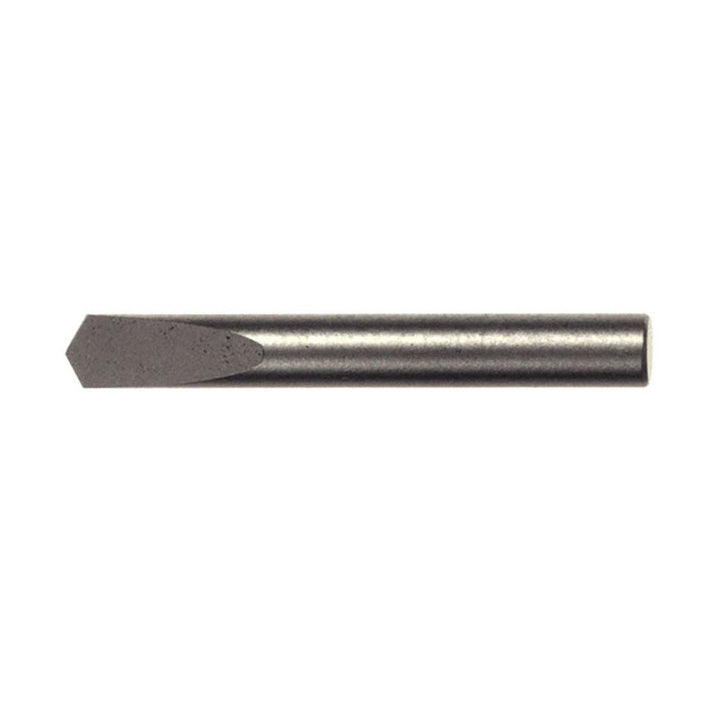

Solid Carbide Drill Bit, 118° point - Chicago-Latrobe 78484
MFR# 78484Series 780
$17.99List $23.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Chicago-Latrobe 78484 is a Solid Carbide drill bit, 118° point. Suited for non-ferrous metal, stainless steel. Series 780.
Specifications
CoatedUncoated
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit size0.125in
Drill point angle118
Flute length0.4375in
Overall length1.5000in
Primary workpiece materialNon-Ferrous Metal; Stainless Steel
Shank diameter0.2000
Shank length1.063in
Tool materialSolid Carbide
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
