Cleveland

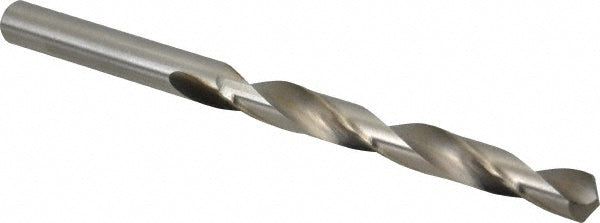

17/64" High Speed Steel Drill Bit, 118° point - Cleveland C03618
MFR# C03618Series 2020
$9.37List $12.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size17/64
Flutes2
Description
The Cleveland C03618 is a 17/64" High Speed Steel drill bit, 118° point. Suited for aluminum. 2-7/8 flute length, 4-1/8 overall length. Series 2020.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in17/64
Drill bit size range0.2500 - 0.3000
Drill point angle degrees118
Flute length in2-7/8
Flute typeSpiral
Number of flutes2
Overall length in4-1/8
Point typeStandard
Primary workpiece materialAluminum
Shank diameter in17/64
Shank length1.2500
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeSlow
StandardsASME B94.11M
Web configurationTapered
Web thinningWeb-Thinned
