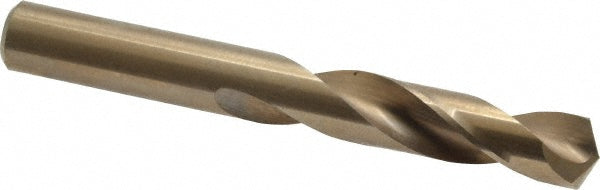

13/32" Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14715

Cleveland

13/32" Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14715

MFR# C14715Series 2133

$14.50List $18.59 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size13/32
Flutes2
CoatingCoated

Description

The Cleveland C14715 is a 13/32" Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for alloy, aluminum. 1-15/16 flute length, 3-5/16 overall length. Series 2133.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit size in13/32
Drill bit size range0.4000 to 0.4500
Drill length typeScrew Machine
Drill point angle135
Flute length in1-15/16
Flute typeSpiral
Material gradeM42
Number of flutes2
Overall length in3-5/16
Point typeSplit
Primary workpiece materialAlloy; Aluminum
Shank diameter0.4062
Shank length in1-3/8
Shank typeStraight-Cylindrical
Specification designationANSI; DIN
Specification numberDIN 1897
Spiral typeRegular
StandardsASME B94.11M
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
