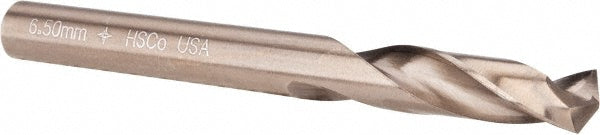

0.2559" Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14808

Cleveland

0.2559" Cobalt Screw Machine Drill Bit, Coated, 135° point - Cleveland C14808

MFR# C14808Series 2133

$6.61List $8.48 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

The Cleveland C14808 is a 0.2559" Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for alloy, aluminum. 1-7/32 flute length. Series 2133.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit size0.2559
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle135
Flute length in1-7/32
Flute typeSpiral
Material gradeM42
Number of flutes2
Overall length2.7560
Point typeSplit
Primary workpiece materialAlloy; Aluminum
Shank diameter0.2559
Shank length1.5354
Shank typeStraight-Cylindrical
Specification designationANSI; DIN
Specification numberDIN 1897
Spiral typeRegular
StandardsASME B94.11M
Tool materialCobalt
Web configurationParallel
Web thinningWeb-Thinned
