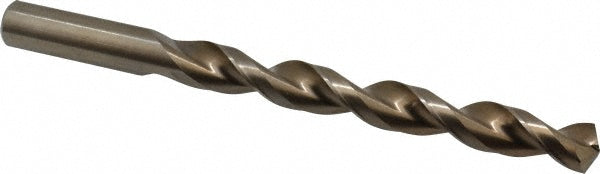

29/64" Cobalt Drill Bit, Gold; Oxide, 135° point - Cleveland C16580

Cleveland

29/64" Cobalt Drill Bit, Gold; Oxide, 135° point - Cleveland C16580

MFR# C16580Series 2075

$42.19List $54.11 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size29/64
Flutes2

Description

The Cleveland C16580 is a 29/64" Cobalt drill bit with a Gold; Oxide finish, 135° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. 4-3/16 flute length, 5-5/8 overall length. Series 2075.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingGold; Oxide
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in29/64
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Flute length in4-3/16
Flute typeParabolic
Material gradeM42
Number of flutes2
Overall length in5-5/8
Point typeSplit
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter in29/64
Shank length1.4400
Shank typeStraight-Cylindrical
Specification designationANSI
StandardsASME B94.11M; DIN 338
Web configurationTapered
Web thinningWeb-Thinned
