Cleveland

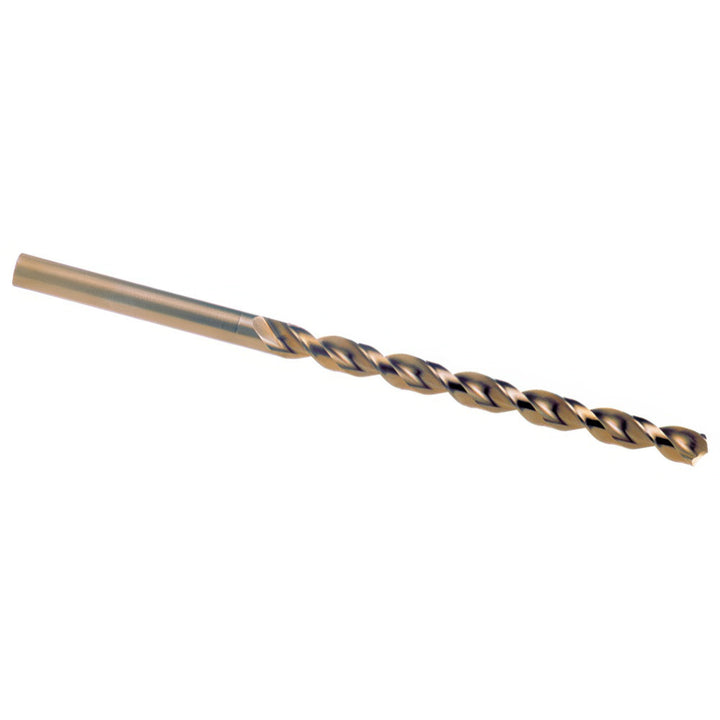

#40 Cobalt Drill Bit, Coated, 135° point - Cleveland C16763
MFR# C16763Series 2575
$29.49List $37.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingCoated
Description
The Cleveland C16763 is a #40 Cobalt drill bit with a Coated finish, 135° point. 2-1/2 flute length. Series 2575.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeHeavy-Duty
Drill bit size0.0980
Drill bit size wire#40
Drill point angle degrees135
Flute length in2-1/2
Flute typeParabolic
Material applicationAluminum; Brass; Carbon Steel; Cast Iron; Nickel Alloy; Plastic; Stainless Steel; Tool Steel
Material gradeM42
Overall length4-5/8
Point typeSplit
Shank diameter0.0980
Shank length2.1250
Shank typeStraight
Specification numberDIN 338
StandardsASME B94.11M; DIN 340
Threaded shankNo
Tool materialCobalt
Web configurationTapered
Web thinningWeb-Thinned
