Cleveland

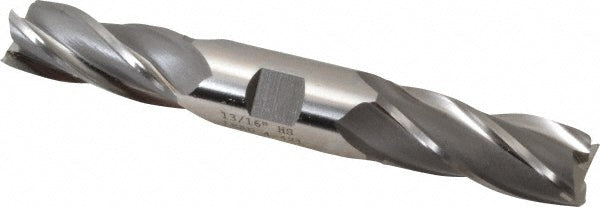

13/16" 4-Flute High Speed Steel Square End Mill - Cleveland C33054

MFR# C33054Series HD-4C

$177.75List $227.97 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter13/16

Flutes4

MaterialHigh Speed Steel

Description

The Cleveland C33054 is a 13/16 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1-7/8 length of cut, 6-1/8 overall length. Series HD-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1-7/8

Length of cut range1.5000 - 2.0000

Length typeRegular

Mill diameter in13/16

Number of flutes4

Overall length in6-1/8

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in7/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
