Cleveland

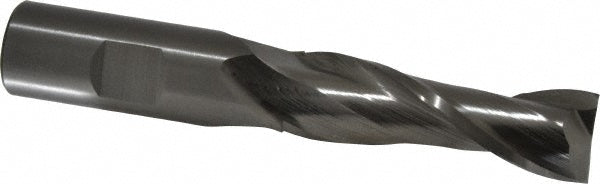

11/16" 2-Flute High Speed Steel Square End Mill - Cleveland C39075

MFR# C39075Series HG-2

$84.22List $108.01 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter11/16

Flutes2

MaterialHigh Speed Steel

Description

The Cleveland C39075 is a 11/16 2-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 2-1/4 length of cut, 4-1/2 overall length. Series HG-2.

Specifications

CentercuttingYes

ChipbreakerNo

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in2-1/4

Length of cut range2.0000+

Length typeLong

Mill diameter in11/16

Number of flutes2

Overall length in4-1/2

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in3/4

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
