Cleveland

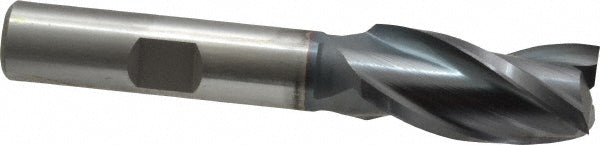

1/2" 3-Flute High Speed Steel Square End Mill, TiCN - Cleveland C39712

MFR# C39712Series HG-3

$78.76List $101.01 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes3

MaterialHigh Speed Steel

CoatingTiCN

Description

The Cleveland C39712 is a 1/2 3-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1 length of cut, 2-11/16 overall length. Series HG-3.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1

Length of cut range1.0000 - 1.2500

Length typeRegular

Mill diameter in1/2

Number of flutes3

Overall length in2-11/16

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
