Cleveland

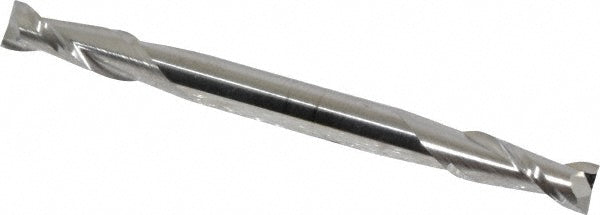

3/16" 2-Flute High Speed Steel Square End Mill - Cleveland C41048

MFR# C41048Series HMD-2

$30.10List $38.61 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes2

MaterialHigh Speed Steel

Description

The Cleveland C41048 is a 3/16 2-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 1/2 length of cut, 2-1/4 overall length. Series HMD-2.

Specifications

CentercuttingYes

ChipbreakerNo

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1/2

Length of cut range0.5000 - 0.6000

Length typeRegular

Mill diameter in3/16

Number of flutes2

Overall length in2-1/4

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in3/16

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
