5/16" 2-Flute High Speed Steel Ball End Mill - Cleveland C42116

MFR# C42116Series HG-2B

$39.35List $50.47 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes2

MaterialHigh Speed Steel

CoatingUncoated

Description

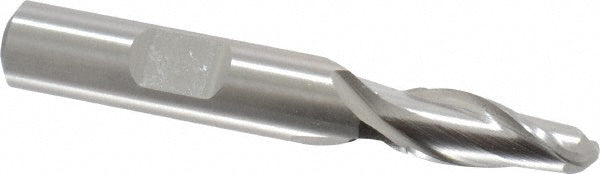

The Cleveland C42116 is a 5/16 2-flute High Speed Steel ball end mill. Suited for cast iron, steel. 3/4 length of cut, 2-1/2 overall length. Series HG-2B.

Specifications

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in3/4

Length typeRegular

Material removal typeFinishing

Mill diameter in5/16

Number of flutes2

Overall length in2-1/2

Primary workpiece materialCast Iron; Steel

Shank diameter in3/8

Single or double endSingle

Variable helixNo

Variable indexNo
