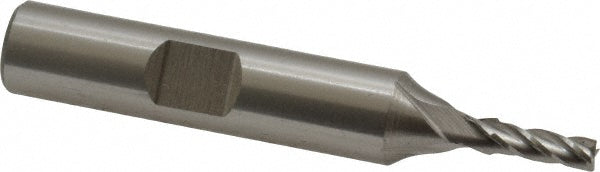

1/8" 4-Flute Cobalt Square End Mill - Cleveland C42684

Cleveland

1/8" 4-Flute Cobalt Square End Mill - Cleveland C42684

MFR# C42684Series HGC-4C

$29.04List $37.24 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes4
MaterialCobalt

Description

The Cleveland C42684 is a 1/8 4-flute Cobalt (M42) square end mill. Suited for high temperature alloy, stainless steel, steel. 3/8 length of cut, 2-5/16 overall length. Series HGC-4C.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/8
Length of cut range0.3000 - 0.5000
Length typeRegular
Material gradeM42
Mill diameter in1/8
Number of flutes4
Overall length in2-5/16
Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel
Shank diameter in3/8
Shank typeStraight-Cylindrical; Weldon Flat
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Cleveland1/8" 4-Flute Cobalt Square End Mill, TiN - Cleveland C32574 $32.94 OSG1/8" 4-Flute Solid Carbide Square End Mill - OSG 444-1250 $42.49 OSG1/8" 4-Flute Vanadium High Speed Steel Square End Mill, TiCN - OSG 5740108 $26.75 Helical Solutions1/8" 4-Flute Solid Carbide Square End Mill, APLUS - Helical Solutions 81635 $25.15
