Cleveland

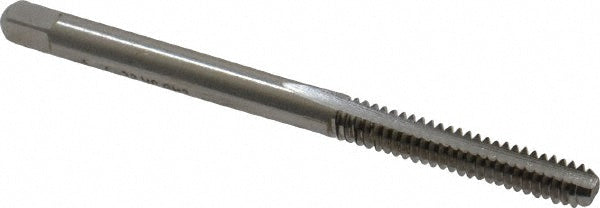

#6-32 UNC High Speed Steel Standard Tap - Cleveland C54216
MFR# C54216Series 1003
$11.03List $14.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#6-32
Description
The Cleveland C54216 is a #6-32 UNC High Speed Steel Standard tap. 2 flutes.
Specifications
ApplicationBlind Hole Threading; Through-Hole Threading
ChamferBottoming
Class of fit3B
Coolant throughNo
MaterialHigh Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Free-Machining Stainless Steel
Number of flutes2
Overall length in2
OversizeNo
Shank diameter0.1410
Square length in3/16
Square size0.1100
Tap typeStandard
Threads per inch32
Thread directionRight Hand
Thread length0.3800
Thread limitH2
Thread size in#6-32
Thread standardUNC
