Dayton Lamina
Die Spring - Dayton Lamina 9-1206-36
MFR# 9-1206-36
$4.42List $5.54
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

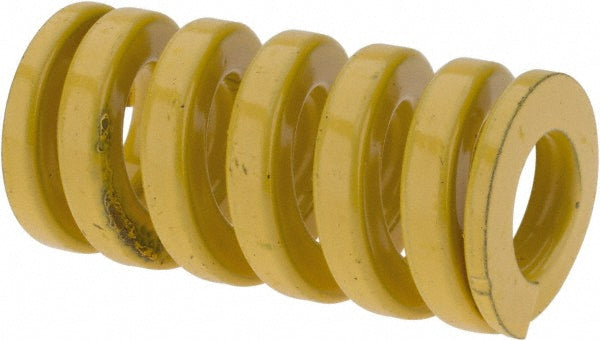

The Dayton Lamina 9-1206-36 is a chromium-vanadium steel die spring. Meets ISO 10243 International Standard.
Specifications
ColorYellow
Duty ratingExtra Heavy-Duty
Free length in1-1/2
Hole diameter in3/4
Iso 90012015 Registered; NAAMS (North American Automotive Metric Standard)
MaterialChromium-Vanadium Steel
Maximum deflection0.3700
Maximum deflection load lb415.00
Maximum operating deflection percent25.00
Rod diameter in3/8
StandardsISO 10243 International Standard
Travel to solid load0.4300
Wire shapeD-Shaped
