Dayton Lamina

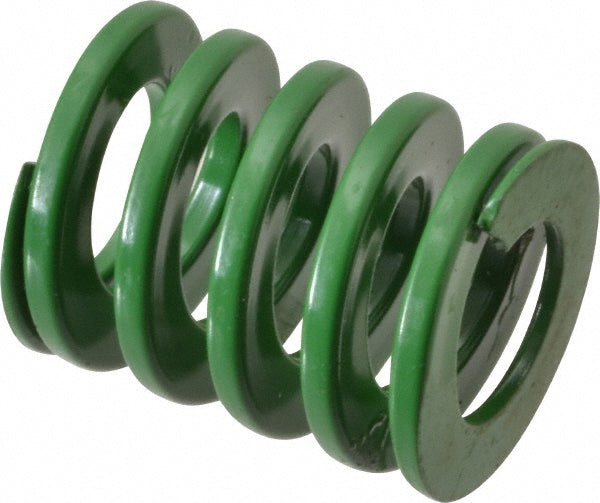

Die Spring - Dayton Lamina 9-2006-11
MFR# 9-2006-11
$6.09List $7.64
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Dayton Lamina 9-2006-11 is a chromium-vanadium steel die spring. Meets ISO 10243 International Standard.
Specifications
ColorGreen
Duty ratingLight-Duty
Free length in1-1/2
Hole diameter in1-1/4
Iso 90012015 Registered; NAAMS (North American Automotive Metric Standard)
MaterialChromium-Vanadium Steel
Maximum deflection0.6000
Maximum deflection load lb346.00
Maximum operating deflection percent40.00
Rod diameter in5/8
StandardsISO 10243 International Standard
Travel to solid load0.7100
Wire shapeD-Shaped
